RM-60 Parts

The following are selected parts available from Wheel Monitor (click on images to enlarge):

(note: for RM-50 parts click here)



hand held diagnostic tool


HAND HELD DIAGNOSTIC TOOL
P/N 200601
designed to simplify trouble shooting
(click image at left to enlarge)



RM-60 MODULE AND KIT
P/N 200506-60OEM
Lifts and locks steer axle plus activates backup lights and alarm when vehical reverses (SPIF). Speed and 4-way flasher control to lift forward trailer axle (SPIF). Capability of locking steer axle (s) aprox. At 60 kmph (SPIF). Offers output for 3 blink bulb check for trailer brake air psi (SPIF).


  Ram Sensor   RAM SENSOR
P/N 200512-SENSOR
Directional sensor was designed to utilize the standard ABS sensor block, clip and 100 tooth ring. High temp. and rough service cable is connected to a water resistant Sure-Seal connector to combat harsh conditions. Sensor alignment is simplified with arrow director.

    7 WIRE SHORT HARNESS
WMDWH4108
P/N 200521
No cutting or splicing is required. Simply (T) into the main trailer harness. Colour coded molded 180 bullets plug into the module. Approx. 12" cable length between Weather Pac connector.


.
   7 WIRE LONG HARNESS
WMDWH2112
P/N 200576
No cutting or splicing is required. Simply (T) into the main trailer harness. Colour coded molded 180 bullets plug into the module. Approx. 12 foot cable length between Weather Pac connector.

    50 FOOT FOUR WAY EXTENSION HARNESS
(RM-60)
P/N 200508
Four pin Weather Pac male connector is available with two lead 16 gauge 50' wires to connect to the right and left signal terminals on the J-560 connector and two 12" leads, pink for the forward lift axle to operate on the four way flashers and red for low brake air bulb check.

    MALE 4 WAY 12"
P/N 200564
Four pin Weather Pac Male connector has four 12" leads to do the same functions as the 50' extention. This connector allows the installer to make up their own harness.

    DAISY CHAIN (10 FT)
WMDWH2032
P/N 200524
10' two lead cable with double 180 female molded bullets on one end and molded male bullets on the other end (air tank psi monitoring option only).

    DAISY CHAIN (3 FT) WMDH2360
P/N 200518
3' two lead cable with molded male bullets on one end and Delphi two pin female connector on the other (psi switch to 10' cable).

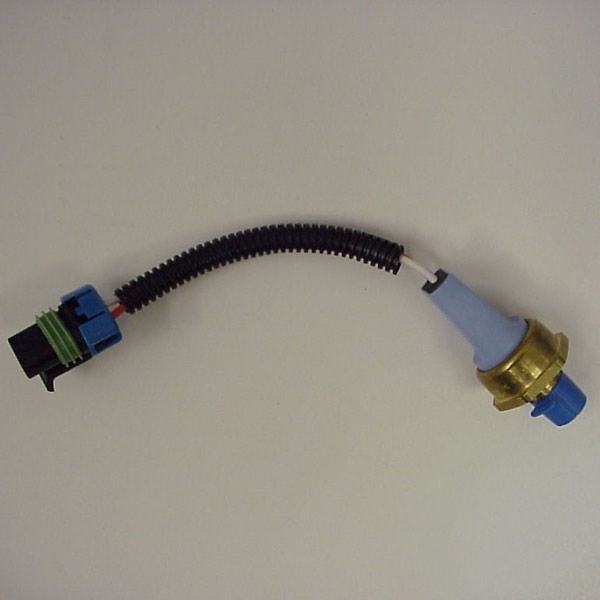

    AIR TANK PSI SENSOR (70PSI)
P/N 200519
Brake air tank PSI sensor (NC) with male Delphi connector trips at approximately 70 PSI.

    17" LEADS WITH MOLDED 180 DEGREE
MALE AND FEMALE BULLETS
16 GAUGE WIRE
P/N - see below
200579 male bullet red 17' long 16 gauge wire
200580 male bullet yellow " "
200581 male bullet brown " "
200582 male bullet green " "
200583 male bullet black " "
200584 male bullet pink " "
200598 male bullet blue " "
200599 male bullet white " "
200586 female bullet white " "
200585 female bullet blue " "

    RM-60 KIT LARGE DECAL
P/N 200575
This decal was made with safety in mind! We encourage trailer OEM's to place this sticker on the trailer visable to any person that will be doing maintenance on the trailer. It is important for anyone doing work on the trailer to be aware that the trailer is equipped with the Reverse-A-Matic.
